OCR Records UI

Full-featured data grid, inline editing, export/import sync, and roster matching for extracted student records.

The @nexa-ed/react package ships two ways to embed the records UI: a fully self-contained drop-in (StudentRecordsTable) and a lower-level composable grid (RecordDataGrid) for custom data layers. Both live under the react section of this SDK.

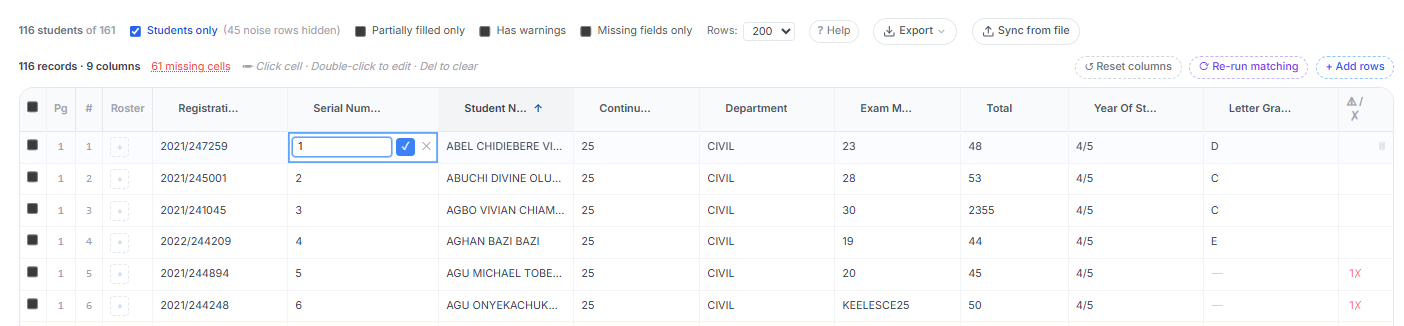

Full records table — overview of the complete UI with all panels, toolbar, and roster column visible

StudentRecordsTable

The highest-level component. Pass only a fileId — everything else is handled internally: paginated fetching, four filter toggles, inline cell editing, column sort, drag-and-drop column reorder, multi-row selection, bulk operations, XLSX/CSV/JSON export, import sync with diff preview, and a full roster matching column.

import { StudentRecordsTable } from "@nexa-ed/react";

export default function RecordsPage({ fileId }: { fileId: string }) {
  return <StudentRecordsTable fileId={fileId} />;
}

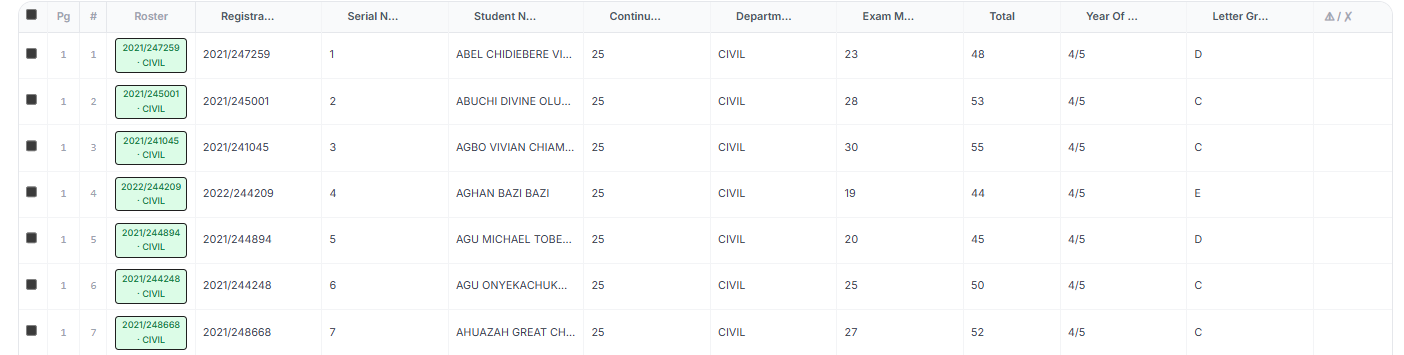

StudentRecordsTable rendered — showing the filter toggles, toolbar, and paginated records

Built-in features

Feature	Details
Filters	Students only · Partial matches · Hide fully missing · Warnings only
Inline editing	Double-click or `Enter` to open a cell; auto-saves on blur / `Tab` / `Enter` / arrow keys
Column sort	Click header → asc → desc → off. Numeric columns compared as numbers
Column reorder	Drag headers; Reset columns restores server order
Row selection	Checkbox, `Shift`+click range, `Ctrl`+click anchor range
Bulk operations	Mass-update a column across selected rows; delete selected rows
Add rows	Inline form per page; rows appended after the last existing record
Renumber	Re-sequences a numeric column from a chosen start number
Export	XLSX (hidden `__record_id`), CSV, JSON — respects active filters and column order
Sync from file	Upload → diff preview (new / updated / unchanged / skipped) → apply
NEW badge	Rows created via sync show a green NEW pill in the `#` column
Roster column	`RosterCell` per row; manual reassignment popover; Re-run matching button

RecordDataGrid

Lower-level grid. All features are opt-in via props — omit a prop group to disable it entirely. Use this when you control your own data-fetching layer.

import { RecordDataGrid } from "@nexa-ed/react";
import type { RecordRow, RosterEntry } from "@nexa-ed/react";

Props reference

Prop	Type	Description
`records`	`RecordRow[]`	Required. Rows to display.
`onSave`	`(id, data) => Promise<void>`	Enables inline editing. Called on cell commit.
`saving`	`string \| null`	ID of the row currently saving — dims that row.
`diffBase`	`Record<id, recordData>`	Pre-edit snapshot. Changed cells render with a blue tint.
`label`	`string`	Optional heading above the grid.
`columnOrder`	`string[]`	Controls the display order of data columns.
`onAddRows`	`(pageNumber, rows) => Promise<void>`	Enables the + Add rows button in the footer.
`onMassUpdate`	`(col, value) => Promise<void>`	Enables the column-level mass-update action bar.
`onDeleteRow`	`(id) => Promise<void>`	Enables the per-row delete icon.
`onDeleteRows`	`(ids[]) => Promise<void>`	Enables Delete selected in the row action bar.
`onMassUpdateRows`	`(ids[], col, value) => Promise<void>`	Enables Set value in column in the row action bar.
`sortCol`	`string \| null`	Currently sorted column.
`sortDir`	`"asc" \| "desc" \| null`	Sort direction.
`onToggleSort`	`(col) => void`	Called when a column header is clicked.
`onRenumber`	`(records, col, start) => Promise<void>`	Enables the Renumber action bar.
`lastSerialNumber`	`number \| null`	Last serial from the previous page — continue a multi-page sequence.
`onRenumberComplete`	`(lastSerial) => void`	Called with the last serial after renumber finishes.
`rosterEntries`	`Map<string, RosterEntry>`	Enables the Roster column.
`onAssignRoster`	`(recordId, rosterId \| null) => void`	Called when a manual assignment is made or cleared.
`onRerunMatching`	`() => void`	Shows the Re-run matching button in the footer.
`onColumnReorder`	`(newOrder: string[]) => void`	Enables column drag-and-drop.
`onResetColumnOrder`	`() => void`	Called when Reset columns is clicked.
`newRecordIds`	`Set<string>`	IDs of rows just created via import sync — shown with a green NEW badge.

RecordDataGrid with inline cell editing active — text input open, row dimmed while saving

Highlighting changed cells with `diffBase`

Capture a snapshot of recordData before a bulk operation and pass it as diffBase. Any cell that now differs from the snapshot renders with a blue tint — useful for post-import review.

const base: Record<string, Record<string, string | null>> = {};
records.forEach((r) => { base[r.id] = { ...r.recordData }; });

// …apply updates…

<RecordDataGrid records={updatedRecords} diffBase={base} />

Building the `rosterEntries` map

const rosterMap = new Map<string, RosterEntry>(
  rosterItems.map((e) => [e.id, {
    id: e.id,
    name: e.name,
    externalId: e.externalId,   // registration / admission number
    classGroup: e.classGroup,   // e.g. "SS3A"
    metadata: e.metadata,       // extra import columns shown as gray tag pills
  }])
);

<RecordDataGrid rosterEntries={rosterMap} onAssignRoster={handleAssign} />

Screenshot

diffBase in action — blue-tinted cells show values changed since the snapshot was taken

RosterCell

Badge + search popover for linking a single record row to a roster entry. Used inside RecordDataGrid but composable anywhere.

import { RosterCell } from "@nexa-ed/react";

<RosterCell
  record={record}
  rosterEntries={rosterMap}
  onAssignRoster={(recordId, rosterId) => {
    // rosterId is null when "Clear match" is chosen
  }}
  disabled={isSaving}
/>

Badge colours

Colour	`rosterMatchStatus`	Meaning
Green	`"auto"`	Linked by the trigram name-similarity algorithm
Amber	`"manual"`	Manually assigned via the popover
None	`null` / `"unmatched"`	Not linked

The popover search filters across name, externalId, classGroup, and all metadata values. Metadata key/value pairs render as small gray tag pills below each result.

RosterCell — green auto-matched badge (left), amber manual badge (centre), and the search popover with metadata tag pills (right)

Custom records page

If StudentRecordsTable is too opinionated and you need full control over data fetching:

"use client";

import { useState, useMemo } from "react";
import { useQuery, useQueryClient } from "@tanstack/react-query";
import { orpc } from "@repo/api/client";
import { useBatchUpdateStudentRecords } from "@nexa-ed/react";
import {
  RecordDataGrid,
  useColumnSort,
  useUpdateRecordInList,
  useAddRowsToList,
  useDeleteRecordFromList,
  useSerialRenumber,
} from "@nexa-ed/react";
import type { RecordRow } from "@nexa-ed/react";

export function CustomRecordsPage({ fileId }: { fileId: string }) {
  const queryClient = useQueryClient();
  const [page, setPage] = useState(1);
  const limit = 50;

  const { data, isLoading } = useQuery(
    orpc.documents.getFileStudentRecords.queryOptions({
      input: { fileId, page, limit },
    })
  );
  const records: RecordRow[] = (data?.items ?? []) as RecordRow[];

  const { sortCol, sortDir, toggleSort, sortedRecords } = useColumnSort();
  const displayed = useMemo(() => sortedRecords(records), [sortedRecords, records]);

  const updateMutation  = useUpdateRecordInList(fileId, page, limit);
  const addRowsMutation = useAddRowsToList(fileId, page, limit);
  const deleteMutation  = useDeleteRecordFromList(fileId, page, limit);
  const batchMutation   = useBatchUpdateStudentRecords();
  const { handleRenumber } = useSerialRenumber(
    fileId, page, limit, undefined, queryClient, batchMutation.mutateAsync
  );

  if (isLoading) return <p>Loading…</p>;

  return (
    <RecordDataGrid
      records={displayed}
      onSave={async (recordId, recordData) => {
        await updateMutation.mutateAsync({ recordId, recordData });
      }}
      saving={updateMutation.isPending ? updateMutation.variables?.recordId : null}
      onAddRows={addRowsMutation.handleAddRows}
      onDeleteRow={async (recordId) => {
        await deleteMutation.mutateAsync({ recordId });
      }}
      sortCol={sortCol}
      sortDir={sortDir}
      onToggleSort={toggleSort}
      onRenumber={handleRenumber}
    />
  );
}

Custom records page using RecordDataGrid with sort, add rows, and delete wired manually

Types

type RecordRow = {
  id: string;
  recordData: Record<string, string | null> | null;
  pageNumber?: number | null;
  recordNumberForPage?: number | null;
  warnings?: unknown;
  rosterId?: string | null;
  rosterMatchConfidence?: string | null; // decimal string e.g. "0.87"
  rosterMatchStatus?: "auto" | "manual" | "unmatched" | null;
};

type RosterEntry = {
  id: string;
  name: string;
  externalId?: string | null;
  classGroup?: string | null;
  metadata?: Record<string, string> | null;
};

Info

For a visual walkthrough of every feature with screenshot slots, see the Records Guide page in your Nexa Ed dashboard at /dashboard/records-guide.
